Headache Rack Wiring

Red Rover, Red Rover, Send Tige Over

Last Changed 2/11/2007
One wiring trunk distributed from the Electrical Compartment is the wiring in the Headache Rack Cabinet.
Headache Rack Wiring The headache rack cabinet has a set of driving lights (tail, stop, and turn) as well as a set of work lights.  We connected those lights to the terminal strips in the Electrical Compartment.  We are using the fused Auxiliary circuit from the Volvo harness for the work lights.
click on images to enlarge

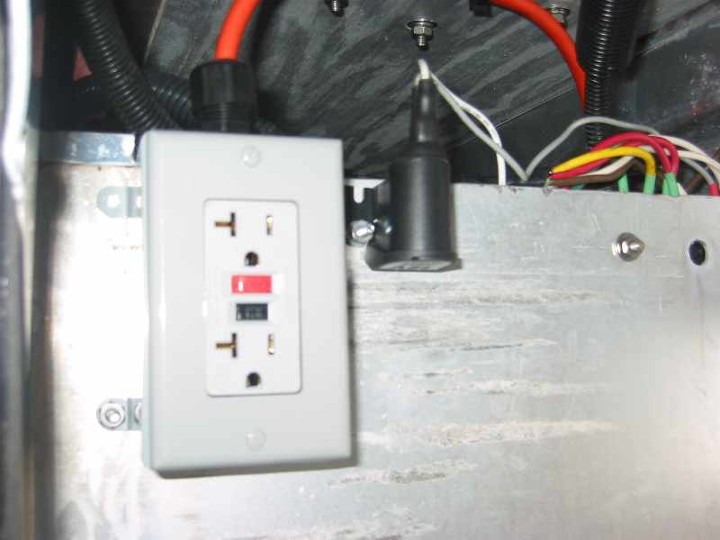

Outlets Here are the AC and DC outlets installed in the headache rack cabinet.

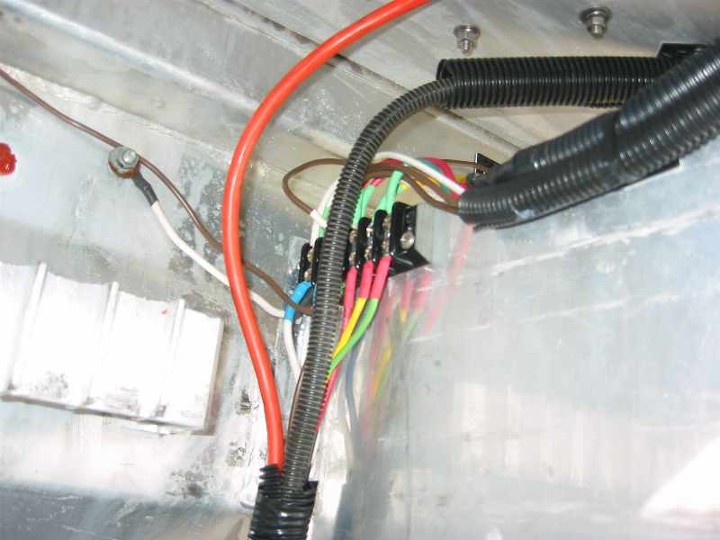

Terminal Strip The terminal strip is for all the light connections in the cabinet.
