Last Changed 2/19/2018 |
||
| We have been spoiled by a single handle shower faucet in Tige so we changed the standard two handle shower faucet in Joey's shower to a single lever faucet. | ||
 |

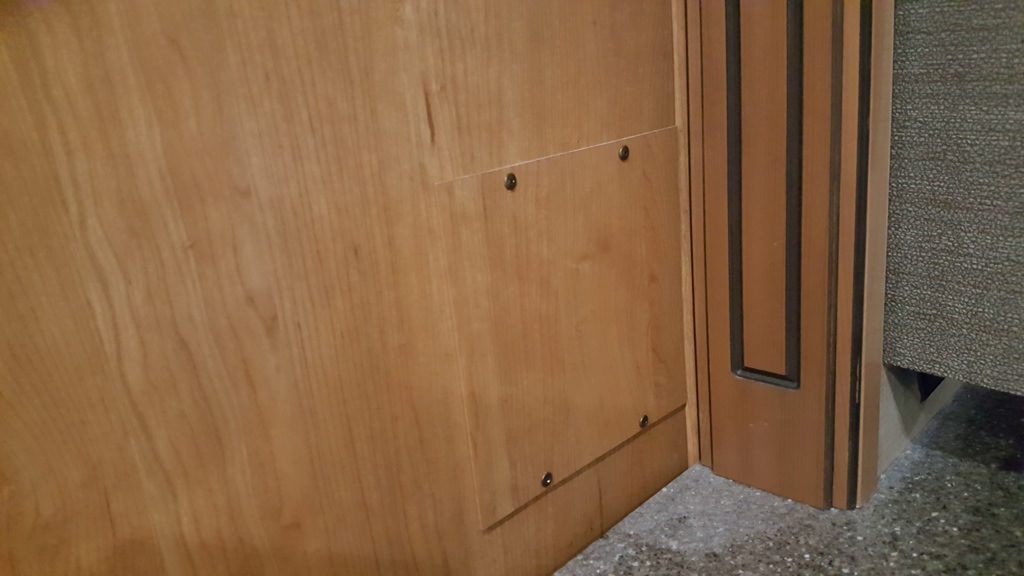

To make is easy to maintain, the Bounder came with access panel cut into the wall behind the shower. |
|
click on images to enlarge |
||
 |

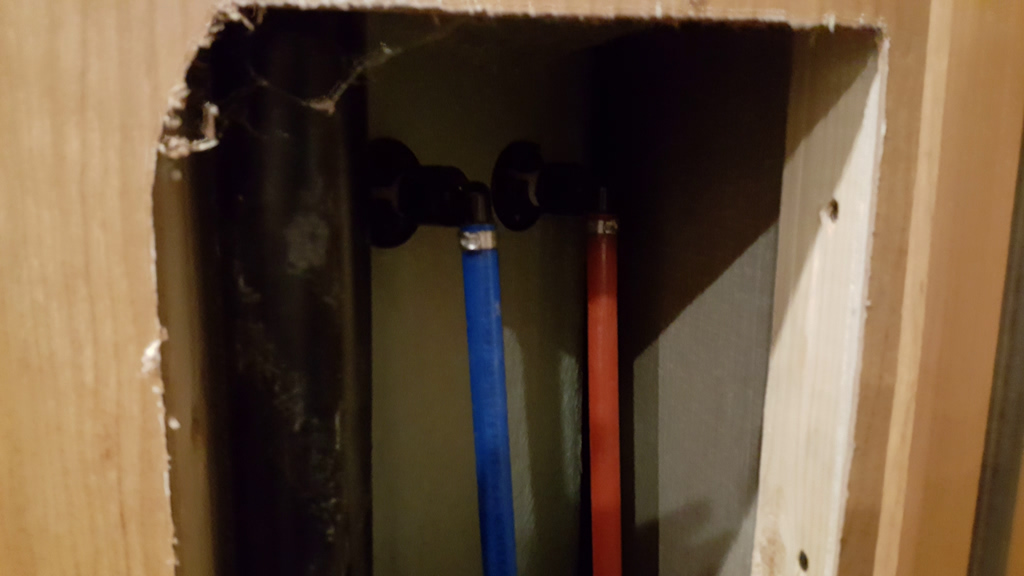

These are the supply lines to the shower faucet. | |
click on images to enlarge |
||
 |
This is the original two handle shower faucet. | |
click on images to enlarge |
||
 |

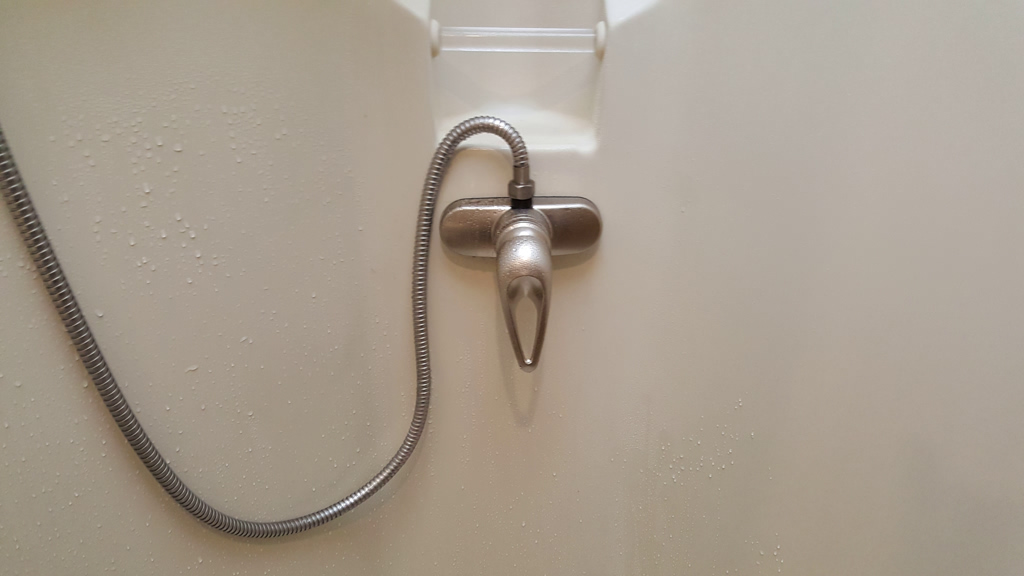

The replacement single shower faucet is special in that it has the connection for the shower wand hose. It is a Dura Faucet DF-SA150-SN. | |
click on images to enlarge |
||
 |
The installation was easy. Unscrew the supply lines. Unscrew the large plastic nuts that held the old faucet in place. Stick the new faucet in the holes (same 4" spacing) and screw on the large plastic retaining nuts. Reattach the supply lines. Test. | |
click on images to enlarge |
||
